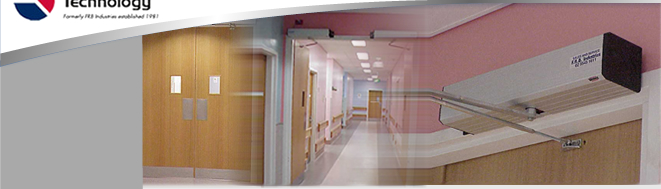

Swing Doors


BET offers automatic swing door operators as a versatile solution for swing door entrances. Our range includes operators for single swing doors, or pair of swing doors opening 'in' or opening 'out'.

These swing door operators can be mounted on the transom above the door, on the top rail of the door, ceiling mounted or in floor mounted.

Swing Doors can be installed anywhere, but are particularly useful in restaurant kitchens, hospital operating theatres, disabled persons toilets, baby change rooms, nursing homes and disabled persons homes.

Comparison Chart
Door Operator Type:

SD 1101

IM 1301

IM 1401

Suitablity:
specially design for large, heavy doors
with reduced size
specially designed for high traffic
Maximum door weight (kg)
200
450
450
Maximum door width (mm)
1200
1500
1800
Dimensions:
Height
85
100
127
Depth
116
135
293
Length
580
640
450
Mounting Type
Door lintel / transom
In floor
Maximum door opening angle (deegrees)
100/110 °
100/110 °
100 °
Hold open time adjustable upto
600 secs
60 secs
600 secs
Permanent

back to top

Brochures

Download: Smart Drive 1101

Download: iMotion 1301

Download: iMotion 1401

Specifications

Download: BET SD 1101 Specifications

Download: BET I MOTION 1301 Specifications

Download: BET I MOTION 1401 Specifications

Drawings
To download the drawings please click here.
