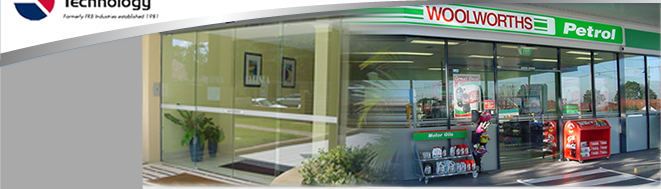

Byrnes Entrance Technology has a large range of automatic sliding doors to suit many purposes. The range includes: Single Sliding Doors, Bi-Parting Doors, Telescopic Doors, Angular Doors, Combi-Breakout Doors and Curved Glass Doors.
BET was the first company with an approved automatic sliding door emergency egress breakout system, to comply with the Building Code of Australia requirements particularly suitable for Clubs, Hotels and Shopping Centres.
| Features |
Door Protection during Power failure:
A
unique in-built safety system brakes the door motion on interruption of mains power, before the fail safe device opens the doors fully. This feature protects against door breakage and personal injury, even if door speed was at it's maximuim at loss of power.
Safety Features:
Continous system self-monitoring of photo-electric safety beams and safety reversing function in both open and close directions, provide for continous personal safety.
Regular self-monitoring of optimum door driving forces protect against unsafe conditions.
Security Locking
The optional automatic security lock mechanically locks together the door leafs, without relying on belt or chain connections. The lock is available in a programmable bi-stable or fail-safe version with battery back-up module.
Networking & Counting:
Optional networking to a personal computer or a full bulding management system allows centralised monitoring and control of all doors in a building complex. Pedestrian traffic counting can also be integrated or added. |
| Comparison Chart |
| Door Operator Type: |
WD 2201 |
BET 2100 |
IM 2301 |
IM 2401 |
| Suitablity: |
| specially design for large, heavy doors |
|
● |
● |
● |
| with reduced size |
● |
|
|
|
| specially designed for high traffic |
● |
● |
● |
● |
| Maximum weight (kg) Single 1-leaf ER/EL |
120+ |
120+ |
150+ |
240+ |
| Maximum weight (kg) bi-parting 2-leaf EB |
200+ |
200+ |
260+ |
400+ |
| Maximum weight (kg) Single Telescopic 2-leaf |
120+ |
|
200+ |
240+ |
| Maximum weight (kg) bi-parting Telescopic 4-leaf |
100+ |
|
320+ |
400+ |
| Maximum opening speed per single door leaf (cm/sec) |
30...80 |
30...50 |
30...80 |
30...80 |
| Dimensions: |
| For use with framed aluminum standard stile width or narrow stile width sliding door, steel framed on Timber |
| Sliding doors |
|
|
|
|
| Height (mm) |
100 |
180 |
180 |
180 |
| Width (mm) |
142 |
155 |
155 |
185 |
| For use with frameless glass sliding doors |
| Height (mm) |
100 |
240 |
240 |
240 |
| Width (mm) |
142 |
155 |
155 |
185 |
| For use with telescopic sliding doors |
| Height (mm) |
100 |
|
205 |
205 |
| Width (mm) |
204 |
|
245 |
275 |
| For use with 'combi' emergency break out doors |
| Height (mm) |
|
|
240 |
240 |
| Width (mm) |
|
|
155 |
185 |
| Operation and maintenance: |
| B.E.T. operating unit with diagnostic function |
● |
● |
● |
● |
| B.E.T. UNINET door management |
● |
|
● |
● |
| Remote control of the operating modes |
● |
● |
● |
● |
| Door status signal |
● |
● |
● |
● |
| Key switch for night access |
● |
● |
● |
● |
| People counter |
● |
|
● |
● |
| Bell functions |
● |
|
● |
● |
| Other configurable functions |
● |
|
● |
● |
| Safety Functions: |
| Automatic reversing |
● |
● |
● |
● |
| Light beams |
● |
● |
● |
● |
| Emergency mechanical opening |
● |
● |
● |
● |
| Emergency power supply |
● |
● |
● |
● |
| Selectable function in case of power failure |
● |
● |
● |
● |
| Emergency-off button |
● |
● |
● |
● |
| Security Functions: |
| Monitored bi-stable lock |
● |
● |
● |
● |
| Night duty lock |
● |
● |
● |
● |
| Burglar alarm function |
● |
● |
● |
● |
| Hold up locking function |
● |
● |
● |
● |
